When it comes to power quality (PQ) analysis, forensic event capture, and mission-critical monitoring, Schneider Electric’s PowerLogic™ ION9000 is the undisputed flagship. Designed for environments where downtime is unaffordable and evidence matters, this meter has become the gold standard across data centers, semiconductor fabs, utilities, and high-reliability industries.
This comprehensive guide explores why the ION9000 is considered the best Schneider Power Quality Meter, what makes it different, and how to deploy it effectively. You’ll also see metrics, feature matrices, and comparisons that will help you justify the investment to management or clients.
📌 Quick backlink for templates & deployment guides:
Visit SmartIoTLink — Energy & PQ Monitoring Resources for wiring templates, integration guides, and PME dashboards tailored for Schneider ION9000 deployments.
Table of Contents
- Introduction: Why Power Quality Matters in 2025
- ION9000 Overview: What It Is and Who It’s For
- Top Features of the ION9000
- 3.1 Accuracy & Standards Compliance
- 3.2 Waveform Capture & Event Logging
- 3.3 Harmonic & Interharmonic Analysis
- 3.4 Programmability with ION Framework
- 3.5 Cybersecurity & Connectivity
- ION9000 vs Other Schneider PQ Meters
- Comparison Matrix: ION9000 vs PM8000 vs ION7400
Introduction: Why Power Quality Matters in 2025
The electrical grid of 2025 looks very different from 2015. Decentralized renewables, EV charging, power-electronic converters, and smart loads are now everywhere. While they make energy greener and smarter, they also inject complex PQ disturbances:
- Harmonics & Interharmonics from drives, LEDs, UPS, and chargers.
- Voltage sags/swells due to dynamic load switching.
- Flicker from industrial welding or arc furnaces.
- Transients & spikes from switching and lightning.
- Phase imbalances that reduce efficiency.
These PQ issues have real business consequences:
- A 100ms sag can trip a semiconductor fab line → millions in lost product.
- Harmonics increase transformer heating, which can lead to premature failure.
- Poor PQ inflates energy losses (I²R) by 2–5%.
- Utilities now impose PQ compliance contracts (EN 50160, IEEE 519).
That’s where the ION9000 comes in — delivering court-defensible PQ data with unprecedented resolution and accuracy.
ION9000 Overview: What It Is and Who It’s For

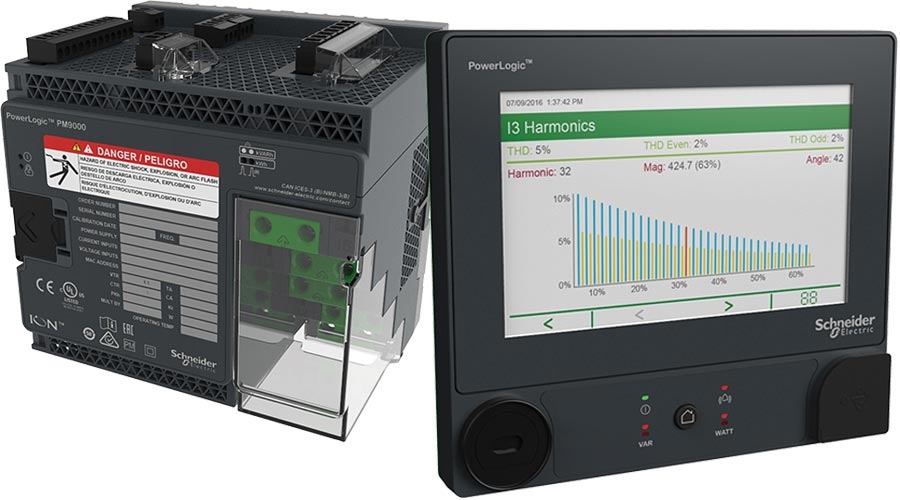

The Schneider PowerLogic ION9000 is a next-generation Class-A power quality analyzer built for mission-critical environments where every waveform counts. It is part of Schneider’s EcoStruxure Power portfolio and fully integrates with Power Monitoring Expert (PME) software.
Target Users:
- Data Centers (Tier III/IV) → SLA compliance, downtime prevention.
- Semiconductor / Pharma Plants → process yield protection.
- Utilities & Grid Operators → compliance, settlement, forensic root cause.
- Critical Infrastructure → airports, hospitals, financial centers.
Positioning in Schneider’s PQ Lineup:
- ION9000: Flagship forensic PQ analyzer.
- PM8000: Enterprise-class PQ + energy monitoring.
- ION7400: Substation-grade PQ with ION programmability.
- ION8650: Utility revenue + PQ.
- PM5000: Budget PQ + energy.
The ION9000 is considered the benchmark Class-A analyzer for PQ professionals worldwide.
Top Features of the ION9000
3.1 Accuracy & Standards Compliance
- IEC 61000-4-30 Ed. 3 Class A compliance → ensures repeatable PQ measurements across vendors.
- Revenue accuracy: 0.1S / 0.2S class, usable for cost allocation or billing.
- IEEE 519, EN 50160, IEC 62586 reporting ready.
This means ION9000 data is admissible in disputes with utilities, clients, or regulators.
3.2 Waveform Capture & Event Logging
- 512 samples/cycle (typical) for transient capture.
- Stores pre-event and post-event data (seconds to minutes).
- Detects sags, swells, interruptions, flicker, and transients with high fidelity.
- Onboard GB-scale memory to retain data during network outages.
Forensic engineers can zoom into individual waveform cycles to identify root causes.
3.3 Harmonic & Interharmonic Analysis
- Measures harmonics up to 127th order (model dependent).
- Provides interharmonics, subharmonics, and total harmonic distortion (THD).
- Identifies resonance conditions and nonlinear load effects.
Perfect for diagnosing VFD harmonics or LED lighting interference.
3.4 Programmability with ION Framework
Unlike fixed-function meters, the ION9000 uses the ION framework:
- Create custom logic modules inside the meter.
- Build alarms, triggers, and derived parameters without the need for external PLCs.
- Configure event thresholds per feeder.
- Run multi-tenant sub-billing from a single device.
This makes it future-proof — instead of waiting for firmware updates, you can build your logic.
3.5 Cybersecurity & Connectivity
- Role-based access control with event logs.
- Encrypted protocols (TLS, HTTPS, SNMPv3).
- Native Modbus TCP, ION, IEC 61850, DNP3 (options).
- Web server with HTML5 dashboards.
- Time sync via NTP/PTP/IRIG-B.
This ensures secure integration into both IT and OT networks.
ION9000 vs Other Schneider PQ Meters
Let’s put the ION9000 side by side with PM8000 and ION7400, its closest cousins.
Key Differences:
- ION9000 = forensic analyzer → unparalleled waveform detail, advanced ION programming.
- PM8000 = enterprise rollout → great balance of PQ and cost for widespread deployment.
- ION7400 = feeder/substation Class A → tailored for utilities and industrial incomers.
Comparison Matrix: ION9000 vs PM8000 vs ION7400
| Feature / Capability | ION9000 | PM8000 | ION7400 |
|---|---|---|---|
| PQ Standard | IEC 61000-4-30 Class A | Class A (option) | Class A |
| Waveform Capture | Ultra-high res (512+ samples/cycle) | High res | High res (feeder focus) |
| Harmonic Range | Up to 127th + interharmonics | Up to 63rd | Up to 63rd |
| Programmability | Full ION framework | Limited | ION framework |
| Revenue Accuracy | 0.1S/0.2S | 0.2S | 0.2S |
| Protocols | Modbus TCP/RTU, ION, IEC 61850, DNP3 | Modbus TCP/RTU | Modbus, ION, utility |
| Target Use | Mission-critical forensic PQ | Broad enterprise deployment | Substation/feeder PQ |
| Price Tier | $$$$$ | $$$ | $$$$ |
